Configure your individual cell from selected, standardized modules
- The TECHTORY-robo-cell enables the accommodation of cobots and industrial robots of various manufacturers
- Robot power-to-weight ratios up to 25 kg can be fitted
- Due to the universal mounting plate on the TECHTORY-robo-cell, applications can be flexibly set up and converted
- Available as stand-alone system including application or as a pure robot platform
- Ground sensors secure the area around the TECHTORY-robo-cell, which enables a higher travel speed of the cobots and the use of industrial robots
- All required components, such as robot control cabinet, pneumatics, electrical cabinet, etc. are located at the bottom of the TECHTORY-robo-cell
Follow a manual added link

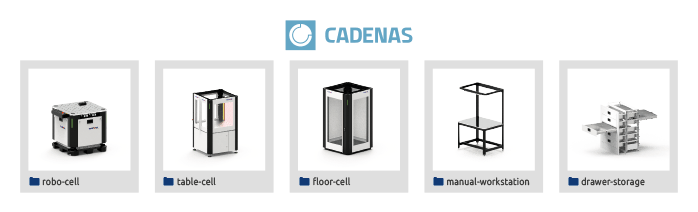

NEW – 3D CAD data of complete automation modules for downloading
Plan and configure your automation project with professional 3D models from our automation toolbox.
Areas of application:
- Loading and unloading
- Assembling
- Testing
- Sorting
Areas of application:
- Loading and unloading
- Assembling
- Testing
- Sorting
Options
- Transport adapter for conversion to a permanently movable platform
- Mechanical or electronic referencing capabilities

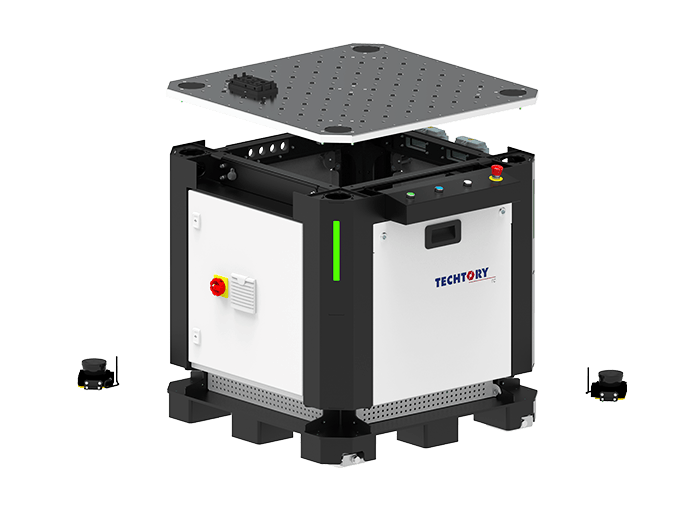

| 1 | Base unit | |
| 2 | Ground sensors | |
| 3 | Universal adapter plate | |
| 4 | Interfaces | |
| 5 | Status light | |
1
2
3
4
5
1
Base unit
2
Ground sensors
3
Universal adapter plate
4
Interfaces
5
Status light
| 1 | Base unit | |
| 2 | Ground sensors | |
| 3 | Universal adapter plate | |
| 4 | Interfaces | |
| 5 | Status light | |
1
2
3
4
5
1
Base unit
2
Ground sensors
3
Universal adapter plate
4
Interfaces
5
Status light
1
2
3
4
5
1
Base unit
2
Ground sensors
3
Universal adapter plate
4
Interfaces
5
Status light

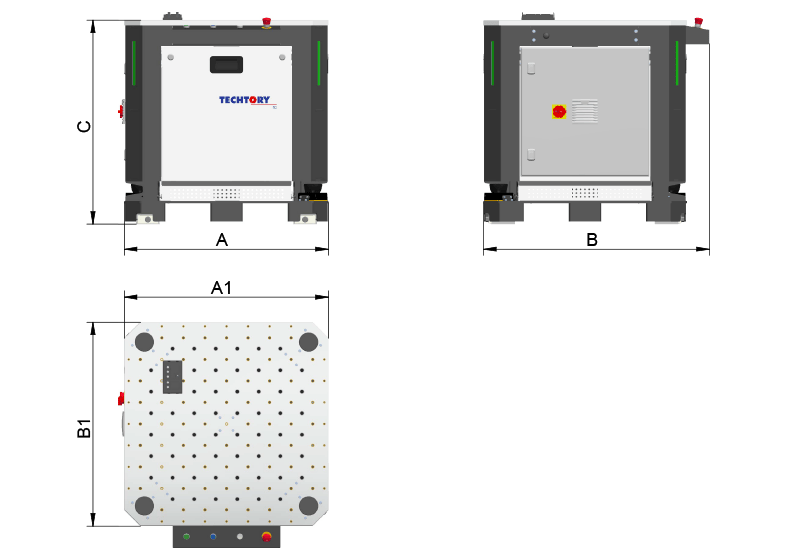

Technical data
| Length (A) | 974 mm |
| Usable length (A1) | 950 mm |
| Width (B) | 1.052 mm |
| Usable width (B1) | 950 mm |
| Height (C) | 950 mm |
| Weight | 308 kg |
| Maximum load | 1.000 kg |
Technical data
| Length (A) | 974 mm |
| Usable length (A1) | 950 mm |
| Width (B) | 1.052 mm |
| Usable width (B1) | 950 mm |
| Height (C) | 950 mm |
| Weight | 308 kg |
| Maximum load | 1.000 kg |
| Length (A) | 974 mm | Usable length (A1) | 950 mm |
| Width (B) | 1.052 mm | Usable width (B1) | 950 mm |
| Height (C) | 950 mm | ||
| Weight | 308 kg | Maximum load | 1.000 kg |
